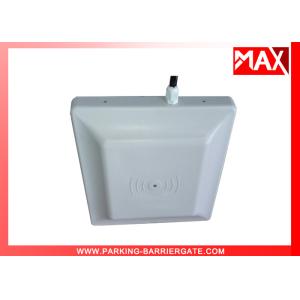

Mid Range Rfid Tag Reader 900mhz , 5 Meter Long Range Uhf Rfid Reader With TCP IP

Brand Name : MAX

Model Number : MX-9U

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Supply Ability : 800 set/month

Delivery Time : 3-10 working days after received your payment

Packaging Details : Export Wooden Case

Power Supply : DC9V

Indicator : LED and buzzer

Protocols : ISO18000-6B, ISO18000-6C

Dimension : 235*235*57mm

RF power : 0~30dBm (Adjustable)

Frequecy Range : 902-928 mhz, 865-868mhz

Contact Now

Mid-Range RFID Tag And Reader 900mhz 5 Meter UHF RFID Reader With TCP IP

The UHF RFID Middle Range Reader is a high performance UHF integrated reader .Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such aslogistics, access control, and anti-counterfeit and industrial production process control system.

> FEATU

Performance Parameters
Working Frequency	902~928Mhz or 865~868MHz
Communication Port	RS232, TCP/IP, Wiegand
Protocol	ISO 18000-6C(ECP C1 GEN2)
RF power	0~30dBm (Adjustable)
Software & SDK	DEMO and C#, VC, VB, Java, DELPH, ect.
Encryption	Can be directly encrypted, copy prevention
Reading Range	Stable reading range 5M(depends on tag & environment)
Industrial Lightning Protection	6000V
Frequency Modulation	Northeast, Northwest extremely cold region, Low Temperature protection
Frequency Modulation Way	Broad spectrum frequency hopping or fixed frequency
Input / Output Port	Two-way relay output (customized), one-way trigger input
Antenna Gain	12dBi linear polarization
Working Way	Buzzer
Power	12V/3A
Physical Parameters
Item Size	220x220x50mm
Package Size	410x270x110mm
Net Weight	3KG
Shell Material	ABS
Working Temperature	-20℃~+65℃
Storage Temperature	-45℃~+95℃

RE:

Application:

1.Intelligent traffic such as ETC;

2. Customs border-crossing;

3. parking lot ;

4. automatic weighting;

5. Container management,pallet management ;

6. asset management ;

7. Ticketing& access control;

8. Pharmaceuticals such as medical waste management

Wiring Diagram:

Mid Range Rfid Tag Reader 900mhz , 5 Meter Long Range Uhf Rfid Reader With TCP IP

No.	Items	Details
1	Red	Power supply with 12V+
2	Black	Power GND
3	Brown	RS485A+
4	Orange	RS485B-
5	Yellow	WG-D0
6	Grey	WG-D1
7	Rose Red	TriggerT+
8	Black	TriggerT-
9	Purple	RS232-RXD
10	White	RS232-TXD
11	Black	GND

Mid Range Rfid Tag Reader 900mhz , 5 Meter Long Range Uhf Rfid Reader With TCP IP
